| Brand Name : | Herbert Truss Structure |
| Model Number : | Q235 |
| Price : | Negotiate |
| Payment Terms : | T/T |
| Supply Ability : | 100 Ton/days |
| Delivery Time : | 21-30 Days |

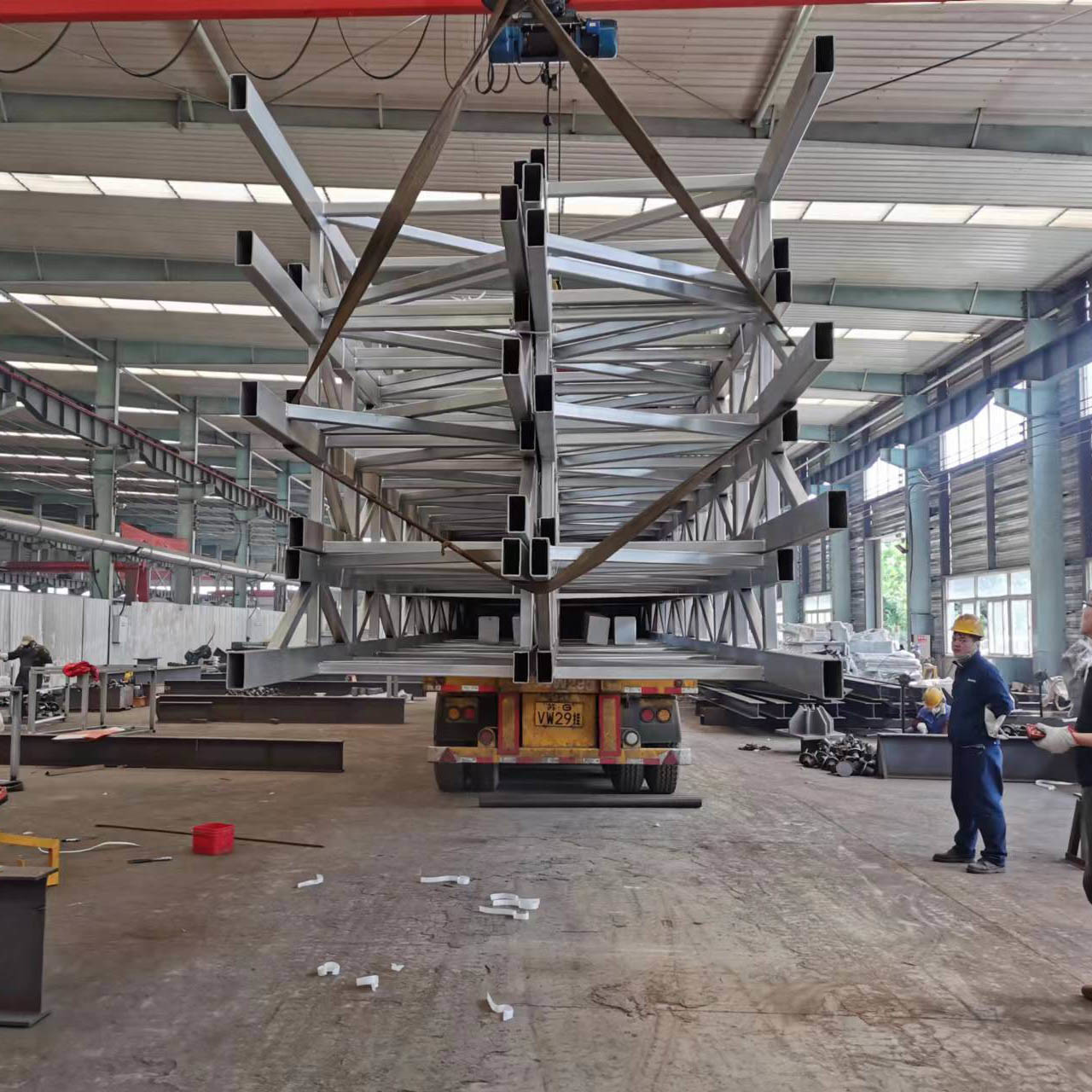

Energy-Saving Space Frame Truss Structural Support Panels for Construction
Description
High strength-to-weight ratio: Truss steel structures are designed to carry heavy loads with minimal material usage. The triangular configuration of the truss members allows for efficient load distribution, resulting in a high strength-to-weight ratio. This means that truss structures can support significant loads while using less steel compared to other structural systems.
Structural stability: Truss structures provide excellent stability due to their geometric configuration. The triangular shape of the truss creates a rigid and stable framework that can withstand various external forces, such as wind and seismic loads. This stability makes truss steel structures suitable for a wide range of applications, including bridges, roofs, and towers.
Clear span capability: Truss steel structures can achieve large clear spans, which means they can cover wide areas without the need for intermediate supports. The triangular truss configuration efficiently distributes the load, allowing for the creation of open and unobstructed spaces. This feature is particularly advantageous in applications such as exhibition halls, sports arenas, and aircraft hangars.
Feature
| Brand name | space frame steel truss construction | |
| Model | 1.Single slope, Double slope, Multi-slope. | |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | ||
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. | |
| 2.All bolts connecting. | ||
| 3.Straight cross-section or Variable cross-section. | ||
| Fabrication | Advanced Automatic Welding Machines | |
| Quality | control GB/T19001-2000----ISO9001:2000 | |
| Surface | Hot-dip galvanized or painted | |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. | |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | ||
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | ||
| Carrying capacity | 1.Resisting winds and seismic impacts. | |
| 2.Bearing heavy snows. | ||
| Drawing | 1.Making the design and quotation according to your requirements very soon. | |
| 2.Making the quotation according to your drawings. | ||
| 3.Giving you the satisfying opinion to your project. | ||
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
|
|
